Command State 92187-92337

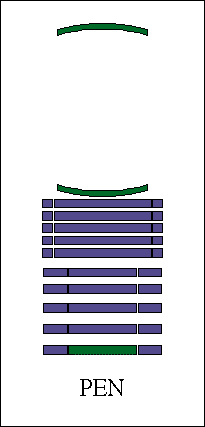

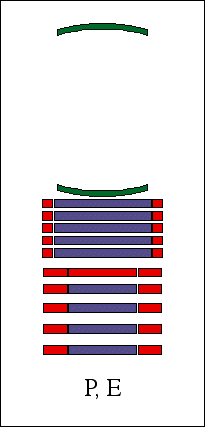

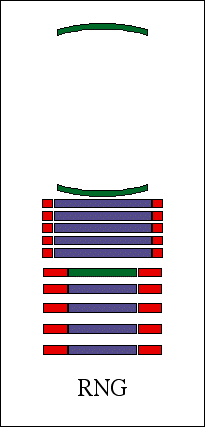

The above diagrams represent the P/E, RNG, and PEN logic as launched. The equations for P/E, RNG, and PEN events are:

Event type

Coincidence equation

P, E

P1.P2.P4*.AL*

RNG

P1.P2.P4.AL*

PEN

P1.P2.P8

The buffers into which "orderly" events can fall are as follows:

Range

No guards triggered

Low, not high guard triggered

High guard triggered

P1

NONE

NONE

NONE

P1 through P2

P/E

NONE

NONE

P1 through P3

P/E

NONE

NONE

P1 through P4, P5, P6, or P7

RNG

NONE

NONE

P1 through P8

RNG, PEN

PEN

PEN

Before launch, the PEN event buffer (PENE) failed. Thus it was disabled (the only change made to command word 3 so far) and the definition of RNG was changed to accept penetrating events by deletion of the P8* term. Thus a nominal penetrating event (P1 through P8, no guards) can be output in either the RNG or PEN buffers; since the RNG buffer is checked first, the PHA event will come out in this buffer unless it is already full (in which case the event will disappear because the PEN buffer is disabled). However, since the rate scalers are accumulated in the opposite order, such an event will always be counted in the PEN rate. Note, however, that a penetrating (P1 through P8) event which also triggers one or both guard thresholds will not be output in the PHA buffers (such events will be rejected from the RNG buffer, and the PEN buffer is disabled), but will still be counted in the PEN rate. Thus the PEN events extracted from the RNG buffer are not an unbiased sample of all events counted in the PEN rate, and fluxes calculated from them will be too high (in my experience, by about 20 to 25 percent).
