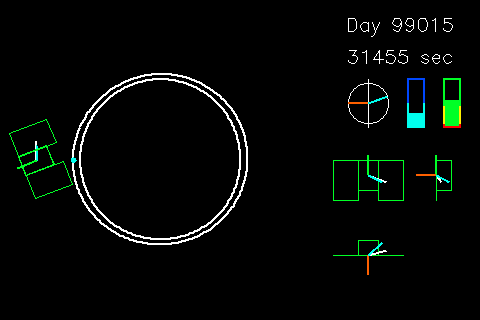

Click on the above still image to go to a page identical to this one but with the animated GIF movie in place of the still. The movie is about 3.4 MB in size; if you would prefer to save it to disk separately, you can use your browser's capabilities and this link to download it directly and skip loading it into your browser.
This is a dawn-dusk orbit that traverses the South Atlantic Anomaly region near the ascending node; the spacecraft pointing strategy is "j-perp", with no ram avoidance constraint. Again, the removal of the ram constraint makes the spacecraft motion very simple, and allows the magnetic field to be followed (perpendicular, parallel, or antiparallel as before) continuously except for transitions and the 180° flips as the equator is crossed in the low-field region.
